KUBE Inline Filters — Clean, Reliable, and Built to Perform

At KUBE Compressors, our Inline Air Filters are engineered to deliver the highest level of air purity and protection for your compressed-air system.
Whether you’re removing particulates, oil aerosols, or vapours, our filters ensure your equipment, tools, and processes operate at peak performance — with minimal pressure drop and maintenance.

Why Choose KUBE Inline Filters?

1. Multi-Stage Filtration Options
Our range covers every stage of air treatment:

  • Particulate filters — remove solid particles such as dust, rust, and pipe scale.

  • Coalescing filters — eliminate oil aerosols and fine mists down to 0.01 μm.

  • Activated carbon filters — remove oil vapours and odours for ultra-clean, odour-free air.

2. High Efficiency, Low Pressure Drop
Precision-engineered filter media ensure excellent contaminant removal without restricting airflow — saving energy and maintaining system efficiency.

3. Robust, Service-Friendly Design
Manufactured from corrosion-resistant aluminium housings with quick-release bowls and safety interlocks, KUBE filters are built for durability and fast element replacement.

4. Clear Performance Indicators
Each filter features a differential-pressure gauge or indicator to alert you when an element needs changing, helping you plan maintenance and avoid costly pressure losses.

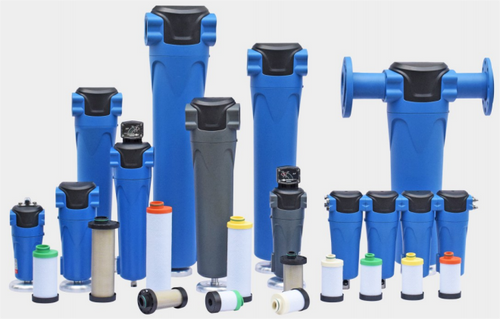

compressed air inline filtration

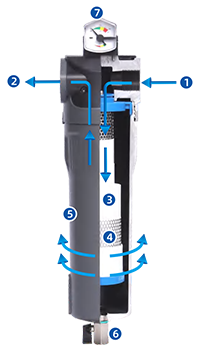

Product features
1.Compressed air inlet
2.Compressed air outlet
3.Filter cartridges
4. Stainless steel diamond mesh design has a large airflow area and low resistance
5. Aluminum alloy material, high-strength and high hardness material, internal and external surge treatment
6. The water valve is equipped with a sealing ring, which does not require the use of adhesive tape and is easy and fast to install
7.Differential pressure gauge:Accurately indicate the differential pressure condition of the filter element and remind timely replacement of the filter element

Benefits at a Glance

  • Delivers ISO 8573-1 compliant air quality

  • Reduces wear, corrosion, and contamination

  • Extends the life of dryers, valves, and tools

  • Minimizes energy costs via low pressure drop

  • Simple installation and servicing

internal inline filter
Download Brochure

Technical Overview

Feature Description

Filtration Grades Particulate (1 μm, 5 μm), Coalescing (0.01 μm), Activated Carbon

Housing Material Anodized aluminium or stainless steel

Element Type Replaceable, high-efficiency microfibre

Pressure Rating Up to 16 bar (standard)

Drain Type Manual or automatic condensate drains

Mounting Inline, wall, or manifold configurations

Maintenance Quick-change elements with indicator monitoring
